FE/FX Forced Ejection Scrapers
Load fast, unload easy, up to 10 cubic yards at a time.
The Forced Ejection FE (dolly-wheel hitch) and FX (drawbar hitch) lines are the most popular scrapers in the lineup. They are designed for precision earthmoving, with the ability to transport soil any distance, and allow the operator to unload at a precise depth with an exact amount of material.
FX Drawbar Hitch
For enhanced traction, the FX line features a drawbar style hitch for increased weight transfer from the scraper to the tractor drawbar. Increased weight transfer combined with the short coupling of the FX scraper’s heavy-duty hitch creates a highly maneuverable machine.
New Zealand Stocked.
Capacity (Heaped) | 7.5 cu. Yd. | |
|---|---|---|
Width Of Cut | 7' | |
Weight | 7,000 | |
Overall Width | 8' | |
Overall Length | 20' | |
Overall Height | 60" | |
Recommended Horsepower | 100-150 | |
Tyre Size Front | N/A | |
Tyre Size Rear | 16.5L x 16.1 10 ply |

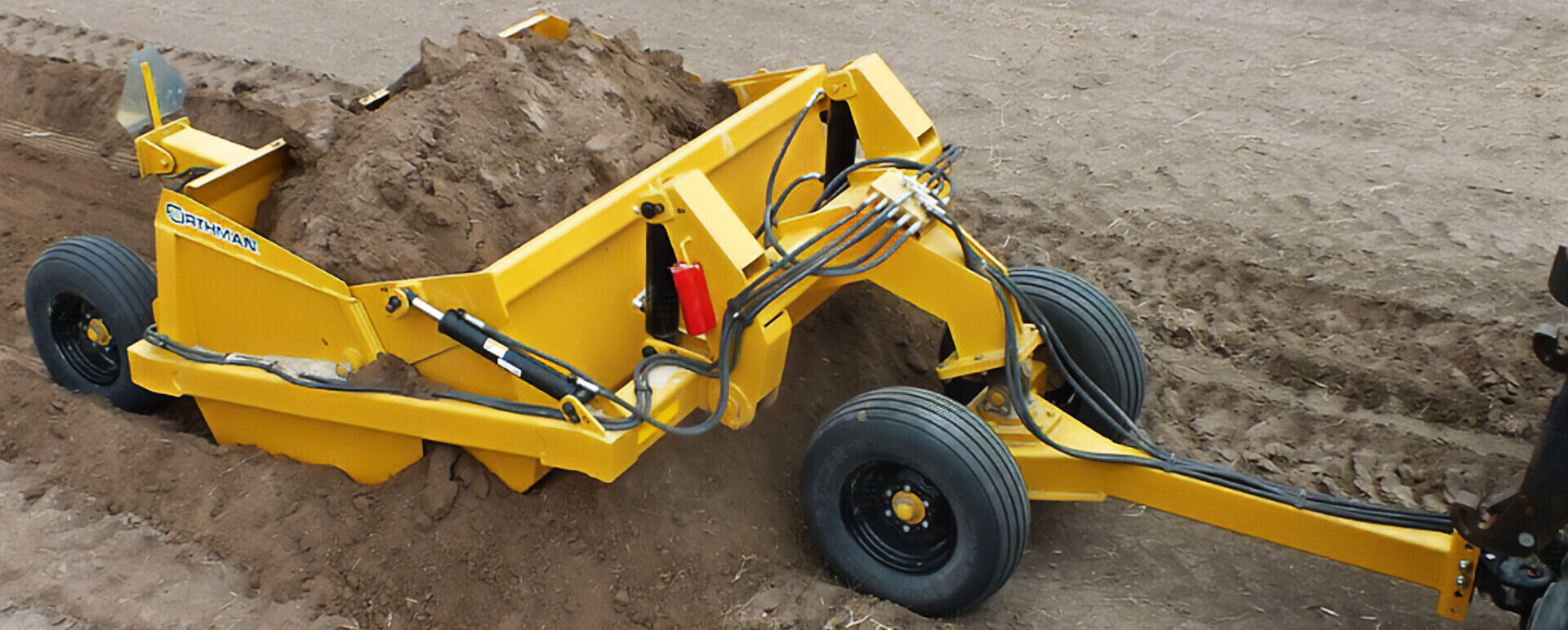

FE Dolly-Wheel Hitch
The FE line features a rugged, two-wheel dolly hitch for quick hookup and front scraper support. The dolly hitch relieves the tractor of drawbar weight, eliminating the need for drawbar reinforcement, and serves as a gauging device for the cutting blade. It is available with 5-, 7.5- and 10-cubic-yard capacities.
Available to order.
Capacity (heaped) | 10 cu. Yd | |
|---|---|---|
Width Of Cut | 8 | |
Weight | 9,650 | |
Overall Width | 9′ – 9″ | |
Overall Length | 24′ – 9″ | |
Overall Height | 84" | |
Recommended Horsepower | 185-250 | |
Tyre Size Front | 16.5L x 16.1 10 ply | |
Tyre Size Rear | 21.5L x 16.1 10 ply |
Features
The wall and gate are controlled by a single hydraulic sequencing valve for ease of use
All FE/FX scrapers are equipped with oversized rear tires for maximum flotation
An Orthman “perfect hitch” is standard equipment, providing maximum flexibility with no performance-robbing hitch slack
Smooth interior design allows for easy and complete cleanout
Standard, high-performance frost bit increases suction for continuous cutting power
Heavy-duty greaseable steel guide rollers provide reliable performance and long service life
Contact us for options and pricing
